Solar Tracking Systems

SAT  ◇  HSAT  ◇  DAT  ◇  Agrovoltaic Tracker  ◇  Vertical Axis  ◇  Floating Tracker  ◇  Tracker Control Systems  ◇  Retrofit Solutions

Niccau Industries Limited manufactures the complete range of solar tracking systems — Single-Axis Trackers (SAT / HSAT) for utility-scale solar, Dual-Axis Trackers (DAT) for maximum yield applications, Agrovoltaic Trackers with elevated clearance for crop co-existence, Terrain-Following SAT for sloped sites, Floating Solar Trackers, and intelligent tracker control systems with IoT-enabled SCADA. Every tracker is IEC 62817 certified, IS 800 structurally designed, and backed by BARREL Group's 5,000 MW project pipeline.

+35%Max Annual Yield Gain (DAT)
±60°SAT Rotation Range
IEC 62817Tracker Design Standard
IoTSmart Control & SCADA
25 YrStructural Warranty
54+Export Countries
☀️ Niccau Industries — Tracker Division

More Sun. More Power. Every Hour of the Day.

Niccau Industries' Tracker Division engineers, manufactures, and commissions solar tracking systems for every application and every scale — from a 10 kWp agricultural solar pump to a 500 MW utility-scale tracking project. As the in-house tracker supplier for BARREL Group's 5,000 MW pipeline, Niccau trackers are proven in real Indian field conditions — Rajasthan desert heat, Gujarat coastal winds, Maharashtra black cotton soil, and Himachal Pradesh rocky terrain.

Every tracker uses Niccau Industries' proprietary control algorithm — combining astronomical sun-position calculations, real-time irradiance sensing, wind-speed monitoring, and backtracking optimisation — to deliver maximum energy harvest while automatically protecting the array during high-wind events.

All trackers: IEC 62817 type-tested | IS 800 structural design | IS 875 Part 3 wind load | IP65/67 control electronics | CE / BIS certified | 25-year structural warranty | IoT / SCADA ready

☀️ Single Axis SAT / HSAT ⚊ Dual Axis DAT 🌿 Agrovoltaic Tracker 💧 Floating Tracker ⚙️ Control Systems
NICCAU Tracker Division — Solar Tracking Systems

An Associate of

BARREL / StenJaan Global Group

Export through DomEx TradLink
☀️

SAT / HSAT

Horizontal single-axis — E-W rotation, +15–25% yield

⚊

Dual Axis DAT

360° azimuth + elevation, +30–40% yield

🏠

Terrain-Following SAT

Sloped / undulating ground, variable pile heights

🌿

Agrovoltaic Tracker

Elevated SAT/DAT for agri-solar co-existence

📈

Vertical Axis & E-W SAT

Vertical bifacial, East-West tracking systems

📊

Control Systems & Retrofit

IoT controller, SCADA, retrofit kits for existing arrays

☀️ Annual Energy Yield Comparison

Trackers vs Fixed Tilt — The Numbers

Real-world yield data from BARREL Group's operating solar projects in Rajasthan, Gujarat, and Andhra Pradesh — comparing fixed tilt reference arrays against Niccau tracker-equipped arrays on the same site.

Baseline Fixed Tilt — Reference

Fixed Tilt Ground Mount

Standard south-facing fixed tilt at site-optimal angle. The baseline against which all tracker gains are measured. Lower CapEx, simpler O&M, proven technology.

Typical: 1500–1700 kWh/kWp/yr (Rajasthan)
+20% vs Fixed Tilt — SAT / HSAT

Single Axis Tracker (SAT)

Horizontal single-axis tracking follows the sun from east to west throughout the day — capturing early morning and late afternoon irradiance missed by fixed tilt arrays.

Typical: 1800–2050 kWh/kWp/yr
+35% vs Fixed Tilt — DAT

Dual Axis Tracker (DAT)

Two-axis tracking always faces the module perpendicular to the sun — capturing maximum irradiance at every hour. Best for DNI-rich locations like Rajasthan and Gujarat.

Typical: 2050–2300 kWh/kWp/yr
Products:
☀️
Single Axis Trackers — SAT / HSAT

Horizontal single-axis trackers rotating east to west around a fixed N-S horizontal axis — delivering 15–25% more annual energy than fixed tilt. Niccau Industries manufactures SAT systems for utility (1 MWp to 500 MWp), C&I (100 kWp to 1 MWp), and agri-solar (10 kWp to 10 MWp) scales. IEC 62817 type-tested. IS 800 structural design. Wind stow at 18 m/s. Backtracking enabled.

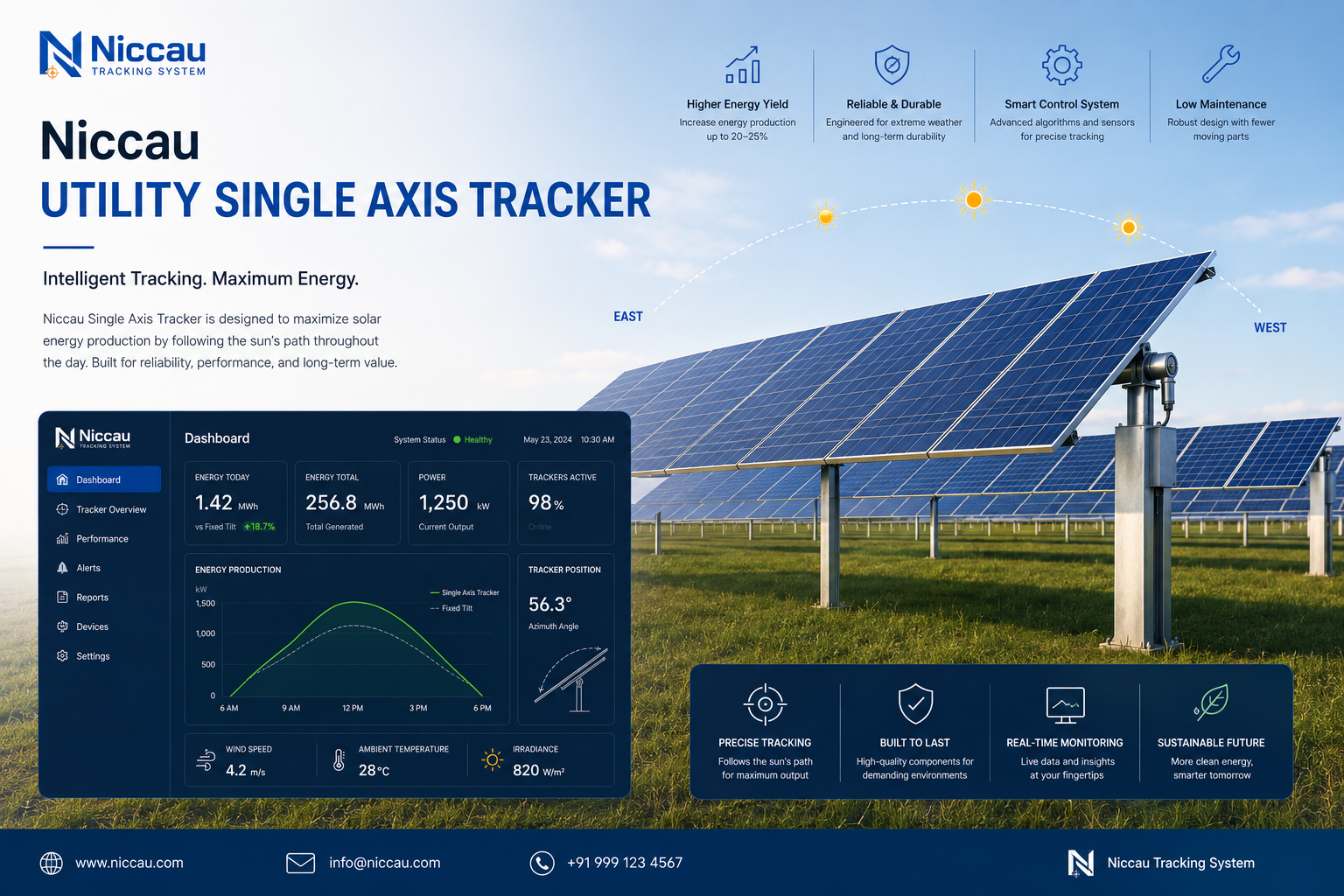

single axis tracker SAT utility solar HSAT torque tube row
SAT Utility1 MWp – 500 MWp

Niccau HSAT — Utility Single Axis Tracker

Horizontal single-axis tracker for large utility solar — driven row design, independent backtracking, 1500V DC ready

Technical Specifications

Tracking Axis: N-S horizontal — E-W rotation Rotation Range: ±55° to ±60° (site-specific) Tracking Algorithm: Astronomical + irradiance Backtracking: Row-level independent Drive: Single motor per row (distributed) Motor: 24VDC BLDC with encoder Torque Tube: RHS / CHS — GMS IS 2062 HDG Pile: C / I section — drive pile / ground screw Bifacial: Optimised ground clearance Module Load: Up to 35 modules per row Wind Stow: Auto at 18 m/s — horizontal Communication: RS485 / Modbus / CAN bus Control: Row controller + master controller Monitoring: Real-time position + fault SCADA Structure: IS 800 / IEC 62817 designed Warranty: 5Y mechanical / 25Y structural
+20% annual yieldBifacial optimisedBacktracking1500V DCIEC 62817
IEC 62817IS 800IS 875
SAT C&I commercial industrial rooftop tracker medium scale
SAT C&I100 kWp – 5 MWp

Niccau SAT-M — Medium Scale C&I Tracker

Compact SAT for C&I ground-mount and large rooftop — fewer modules per row, lightweight, faster installation

Technical Specifications

Tracking: Horizontal N-S axis Rotation: ±55° Module per Row: 12–20 Nos. Drive: Single motor per 2–3 rows Motor: 24VDC with absolute encoder Torque Tube: Aluminium / GMS HDG Foundation: Drive pile (soft soil) / anchor Wind stow: 15 m/s auto Control: WiFi or RS485 to master Monitoring: App-based mobile dashboard 1000V / 1500V DC compatible Install time: 40% faster than utility SAT
App monitoringFast installLightweightC&I ready
IEC 62817IS 800
SAT bifacial tracker utility solar backtracking optimised
Bifacial SATBifacial Optimised

Niccau BiFi-SAT — Bifacial Optimised Tracker

SAT designed specifically for bifacial TOPCon modules — optimal ground clearance, albedo-optimised pitch, rear-yield maximised

Technical Specifications

Module: Bifacial TOPCon / HJT optimised Ground Clearance: 1.0m – 1.5m (albedo) Pitch Optimisation: Rear irradiance modelled GCR: 0.35–0.45 bifacial optimal Stow Position: Tilt for max rear gain Torque Tube: Wide — reduced rear shading Row Spacing: Bifacial shading model Algorithm: Bifacial yield optimisation Rear Gain: +5% to +25% additional Tracking: ±60° — extended range Control: AI-assisted irradiance sensing Warranty: 5Y mechanical / 25Y structural
Bifacial TOPCon+25% rear gainAlbedo optimisedAI algorithm
IEC 62817IS 800Bifacial
⚊
Dual Axis Trackers — DAT

Two-axis solar tracking — azimuth (0°–360°) plus elevation (0°–90°) — keeps modules always perpendicular to the sun for maximum irradiance capture. Best suited for DNI-rich locations in Rajasthan, Gujarat, and Tamil Nadu. Pedestal-mounted (medium scale) and distributed-drive (large scale) designs. +30–40% annual yield gain vs fixed tilt. IEC 62817 certified.

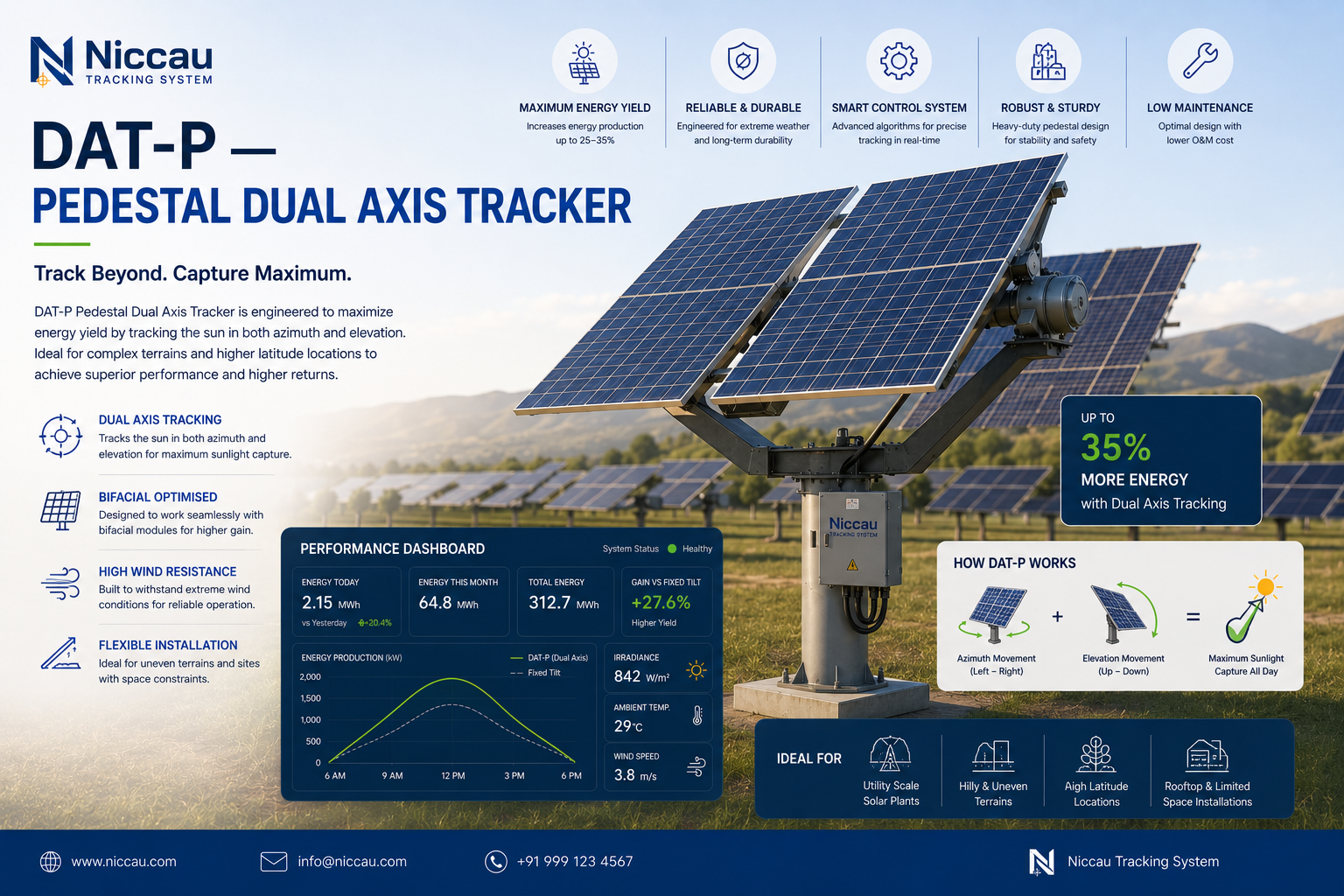

dual axis tracker DAT pedestal slewing ring solar
DAT Pedestal10 kWp – 100 kWp

Niccau DAT-P — Pedestal Dual Axis Tracker

Slewing ring pedestal dual-axis tracker — always perpendicular to sun, +35% yield gain over fixed tilt

Technical Specifications

Azimuth: 0°–360° full rotation Elevation: 0°–90° tilt range Capacity: 10 kWp – 100 kWp per unit Drive: Slewing ring motor (azimuth) Drive: Linear actuator (elevation) Pedestal: Heavy CHS column — HDG Foundation: Deep RCC footing IS 456 Control: Astronomical algorithm + sun sensor Wind Stow: Auto flat horizontal at 18 m/s Yield Gain: +30–35% vs fixed tilt Monitoring: SCADA / 4G remote dashboard Warranty: 5Y mech / 25Y structural
+35% yield360° azimuthSlewing ringDesert ideal
IEC 62817IS 800IS 456
dual axis tracker large scale tilt roll utility solar
DAT Tilt-Roll1 MWp – 50 MWp

Niccau DAT-TR — Large Scale Tilt-Roll Dual Axis

Tilt-and-roll dual-axis — rows tilt N-S while rotating E-W for large-scale dual-axis installations

Technical Specifications

Roll Axis: E-W horizontal rotation ±60° Tilt Axis: N-S tilt ±30° Array size: 100–1000 kWp per section Drive (Roll): Distributed motor row drive Drive (Tilt): Hydraulic / motorised actuator Structure: Portal frame + torque tube Foundation: Drive pile / deep concrete Control: Master + row controllers mesh Yield: +35–40% vs fixed tilt Wind Stow: Horizontal lock both axes SCADA: IEC 61850 / Modbus integration Warranty: 5Y mech / 25Y structural
+40% yieldTilt + rollLarge-scaleModbus / SCADA
IEC 62817IS 800
dual axis tracker concentrated solar CPV HCPV
CPV / HCPV DATHigh Precision

Niccau DAT-CPV — High-Precision Concentrator Tracker

Ultra-precision ±0.1° tracking for CPV / HCPV concentrating solar systems — sub-0.1° pointing accuracy

Technical Specifications

Pointing Accuracy: ±0.1° (sub-mrad) Tracking Speed: Up to 10°/min Application: CPV / HCPV / dish Stirling Azimuth: 360° — precision worm gear Elevation: 0°–90° — worm drive Sun Sensor: Quad-cell photodiode closed-loop Controller: Real-time closed-loop PID Load: Up to 8m² aperture area Wind Stow: Hard stop — auto protection Power: 24VDC / 240VAC driver Communication: Ethernet / RS485 Application: Research / CSP / HCPV
±0.1° accuracyClosed-loop PIDCPV / HCPVResearch grade
IEC 62817±0.1°
🏠
Terrain-Following SAT — Sloped & Undulating Ground

Standard SAT systems require relatively flat terrain. Niccau's Terrain-Following SAT (TF-SAT) solves the challenge of undulating, sloped, and hilly ground — using variable pile heights, independent row rotation, multi-segment torque tube flex joints, and a mesh network controller for each row to enable SAT deployment on sites with up to 20° N-S slope and 10° E-W cross-slope.

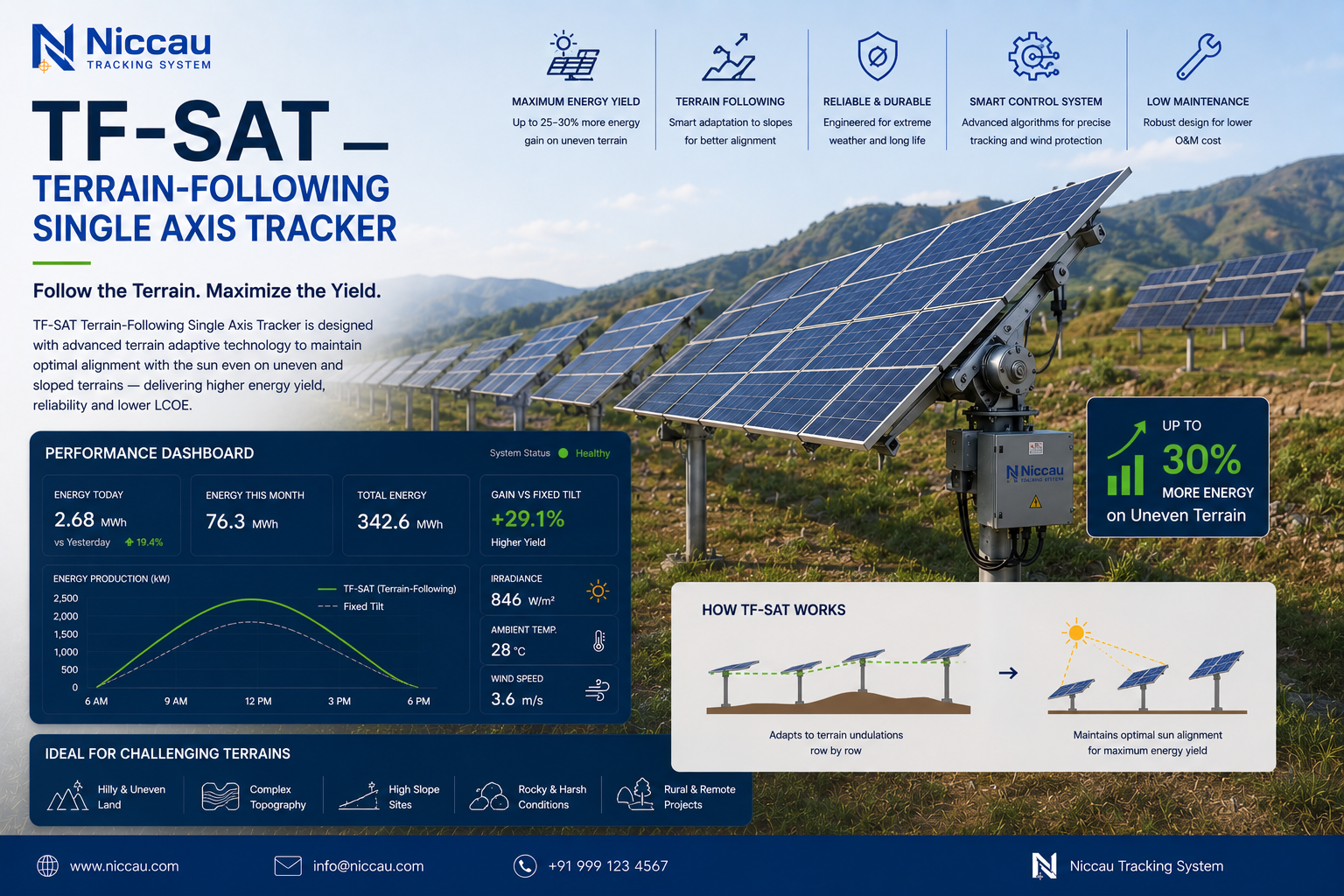

terrain following SAT sloped undulating ground hilly solar
TF-SATSloped Up to 20° N-S

Niccau TF-SAT — Terrain-Following Single Axis Tracker

Independent row SAT for sloped, undulating, and hilly ground — variable pile heights, row-level autonomous control

Technical Specifications

N-S Slope: Up to 20° terrain slope E-W Slope: Up to 10° cross-slope Pile Height: Variable per topographic survey Row Control: Each row self-contained Communication: Wireless mesh — no data cable Backtracking: Row-level independent algorithm Torque Tube: Multi-segment with flex joints Foundation: Ground screw / pile — mixed Rotation: ±55° Wind Stow: Row-independent auto stow Yield vs Fixed: +12–18% (slope-dependent) Warranty: 5Y mech / 25Y structural
20° N-S slopeVariable pile heightWireless meshRow independent
IEC 62817IS 800IS 875

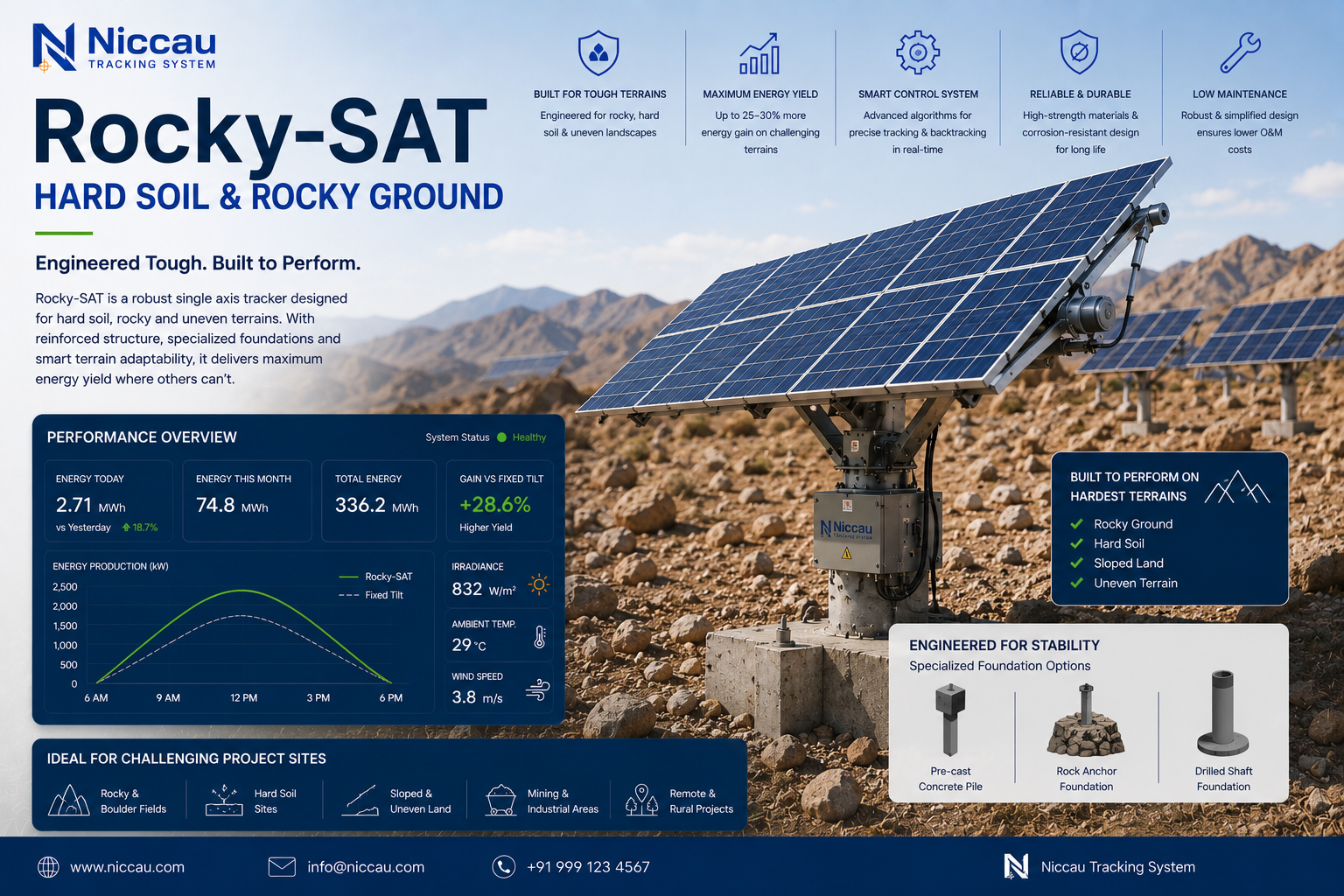

rocky terrain SAT concrete stub anchor solar tracker
Rocky Terrain SATRocky / Hard Soil

Niccau Rocky-SAT — Hard Soil & Rocky Ground

Specially designed for rocky ground, hard laterite, or black cotton soil — concrete stub or rock anchor foundation

Technical Specifications

Foundation: Concrete stub + anchor bolt Rock Anchor: Grouted rock bolt option Soil: Rocky / laterite / black cotton Site: Geotechnical investigation required Stub Design: IS 456 + soil test Pile Alternative: None — concrete footing Tracker: SAT / TF-SAT on stub base Rotation: ±55° Seismic: IS 1893 zone-specific design States: Karnataka, AP, Telangana, Jharkhand Lead time: Survey → design → supply 8 weeks Warranty: 5Y mech / 25Y structural
Rocky groundConcrete stubRock anchorIS 1893 seismic
IS 800IS 456IS 1893

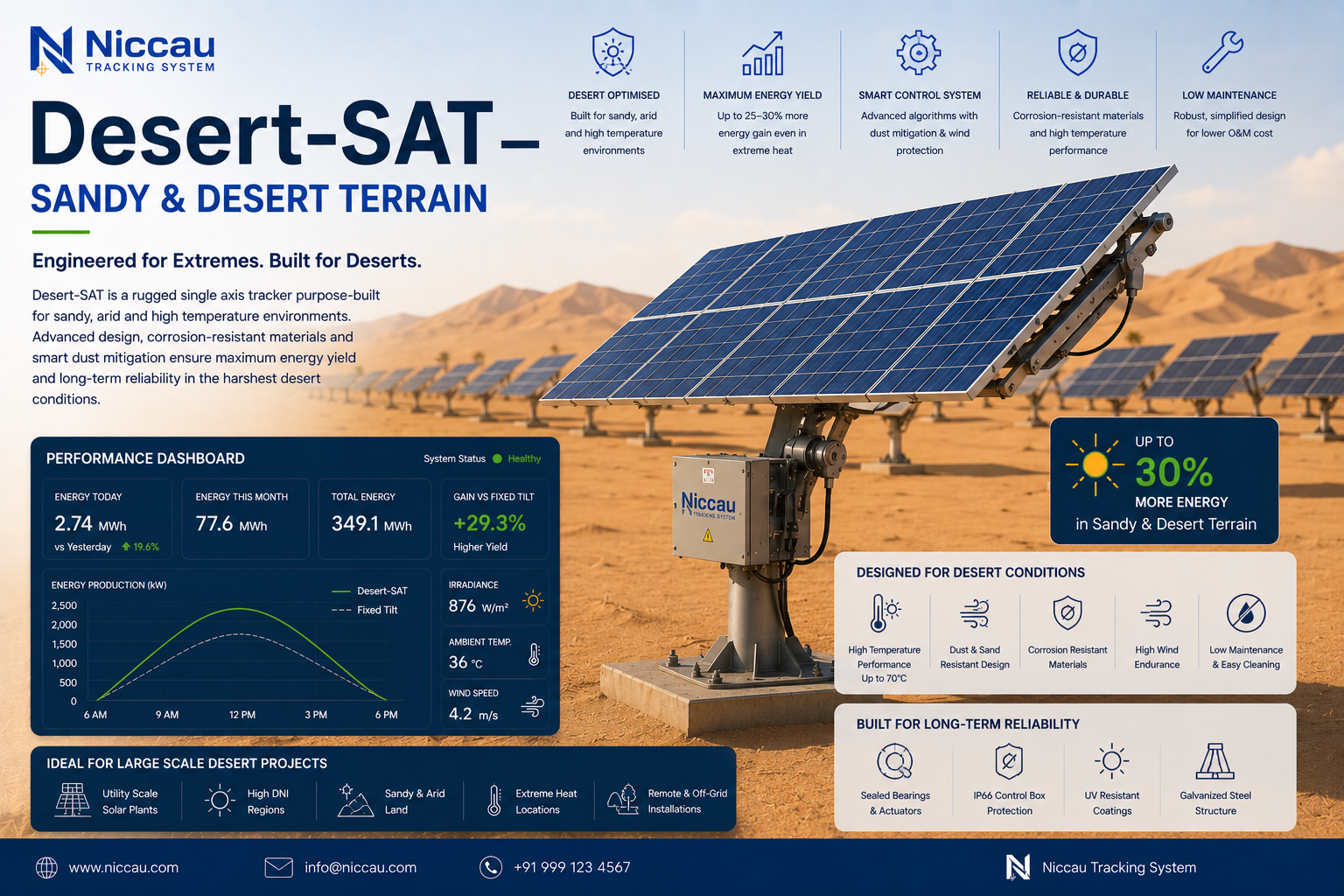

desert sand SAT tracker Rajasthan Gujarat utility solar
Desert SATSandy / Desert Soil

Niccau Desert-SAT — Sandy & Desert Terrain

Engineered for Rajasthan and Gujarat desert terrain — sand-proof drive systems, enhanced sealing, helical ground screws

Technical Specifications

Foundation: Helical ground screw — sand soil Screw Depth: 2.0m – 3.0m (sand density) Drive Box: IP67 sand-sealed enclosure Motor: Hermetically sealed brushless DC Sealing: Dust / sand proof — IP67 all joints Wind Zone: IS 875 Zone IV/V — cyclonic Stow: Auto at 18 m/s — sand storm Temp: –10°C to +75°C ambient Self-cleaning: Anti-sand accumulation design States: Rajasthan / Gujarat primary Control: Dust-proof outdoor rated panel Warranty: 5Y mech / 25Y structural
Sand-proof IP67Helical screwRajasthan desertStorm stow auto
IEC 62817IS 875IP67
🌿
Agrovoltaic Trackers — Solar + Farming

Elevated agrovoltaic SAT and DAT systems that combine solar power generation with active crop farming beneath — 2m to 4m+ ground clearance, tractor-width column spacing, bifacial module optimised, and PAR-light distribution modelling for specific crop types. PM-KUSUM agri-solar eligible. MNRE agrovoltaic specification compliant.

agrovoltaic elevated SAT tracker 3m clearance farming below solar above
Agrovoltaic SAT2m – 4m Clearance

Niccau Agri-SAT — Elevated Agrovoltaic Tracker

Single-axis tracker at 2–4m elevation — solar generation above, full crop farming below with tractor access

Technical Specifications

Ground Clearance: 2.0m – 4.0m adj. Column Spacing: 6m – 10m (tractor access) Rotation: ±55° E-W horizontal axis Module: Bifacial TOPCon — rear light gain Shading: PAR model per crop type Column: Heavy RHS — IS 2062 HDG Foundation: Deep pile / RCC footing Stow: Horizontal at high wind — 18 m/s Crop Compatible: Vegetables, wheat, pulse PM-KUSUM: Agri-solar component eligible Wind Load: IS 875 — elevated exposure Warranty: 5Y mech / 25Y structural
PM-KUSUM eligibleTractor accessBifacial readyPAR modelled
IEC 62817IS 800PM-KUSUM

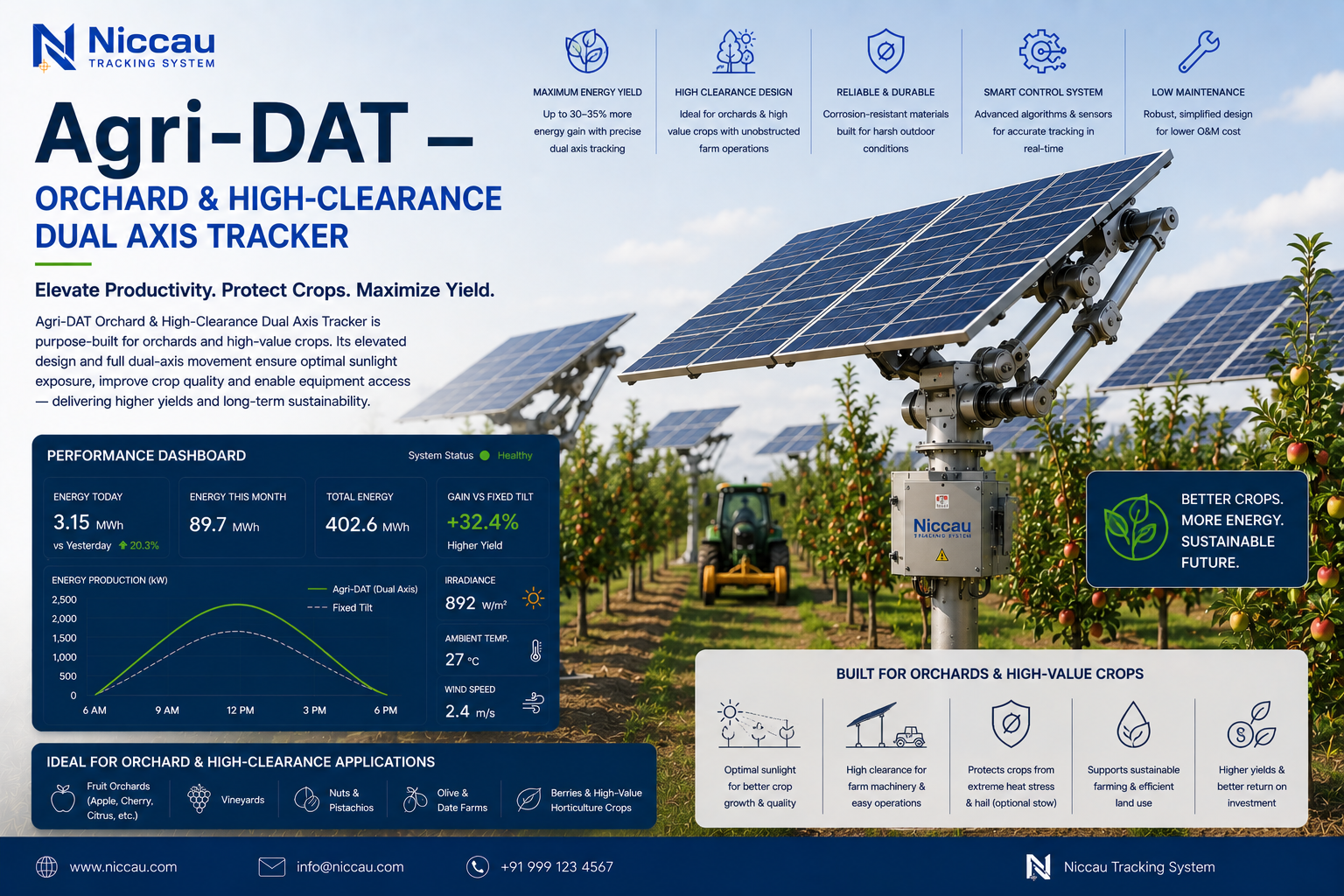

agrovoltaic dual axis DAT tracker orchard plantation clearance
Agrovoltaic DATOrchard / Plantation

Niccau Agri-DAT — Orchard & High-Clearance Dual Axis

Dual-axis tracker at 4–6m clearance for orchards, coffee, tea, and horticulture plantations

Technical Specifications

Ground Clearance: 4.0m – 6.0m (orchard) Azimuth: 0°–360° full rotation Elevation: 5°–90° Pedestal: Extra-tall CHS column HDG Module: Bifacial — semi-transparent option PAR: Diffuse light model for fruit trees Foundation: Deep RCC with IS 456 design Wind Stow: Horizontal auto — storm mode Crops: Banana, coffee, tea, spice, fruit Yield Gain: +35% over elevated fixed States: Kerala, Coorg, Chikmagalur, Assam Warranty: 5Y mech / 25Y structural
6m+ clearanceOrchard gradeDiffuse PAR+35% yield
IEC 62817IS 800
canal top tracker solar structure water irrigation
Floating TrackerWater Body SAT

Niccau Float-SAT — Floating Solar Tracker

Single-axis tracking on floating HDPE pontoon platforms — combines floating solar with SAT yield gains

Technical Specifications

Platform: HDPE marine pontoon base Tracking: SAT rotation on floating platform Rotation: ±30° (wave stability limited) Wave Design: Up to 0.8m wave height Mooring: Tension mooring — fixed heading N-S alignment: Mooring-fixed orientation Drive: IP68 waterproof motor + encoder Control: Wireless — waterproof rated Stow: Horizontal stow — wave / wind Module: Marine-grade Ecstasy FloatSun Yield Gain: +12–18% vs floating fixed Warranty: 5Y mech / 25Y structural
Floating SATIP68 driveWave designedMarine grade
IEC 62817IP68HDPE
📈
Vertical Axis & East-West Trackers

Alternative tracking geometries for specific applications — Vertical Axis Tracker (VAT) for urban rooftops and facades where space is limited but building aesthetics matter, East-West SAT for high-density sites that maximise modules per hectare, and the patented Niccau E-W Bifacial Rotating Fence for agrovoltaic field boundaries with E-W tracking capability.

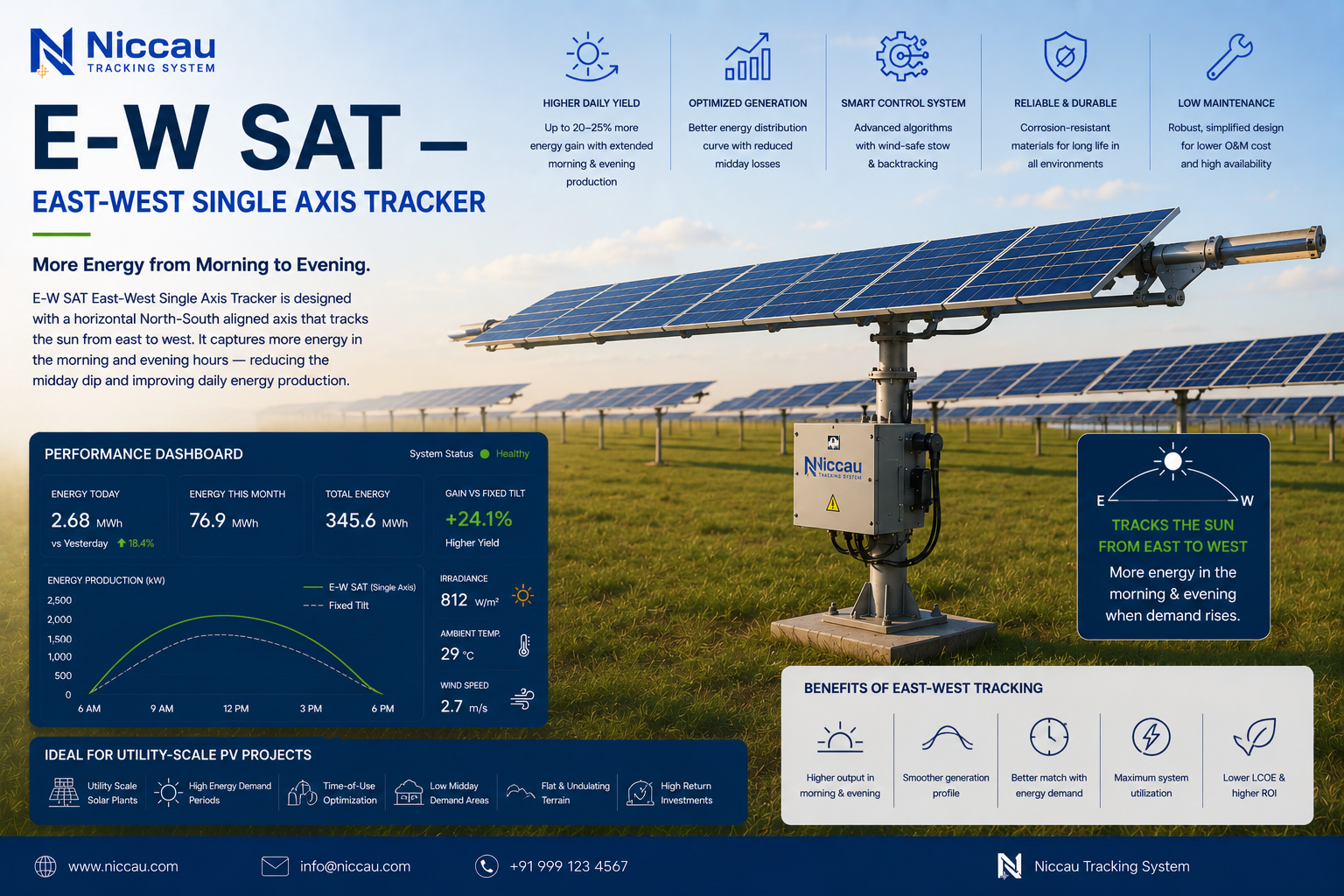

East West SAT E-W tracker high density site solar
E-W TrackerHigh Density

Niccau E-W SAT — East-West Single Axis Tracker

Modules tilted E-W and tracked N-S — maximum modules per hectare with morning + evening dual peak output

Technical Specifications

Module Orientation: E-W tilt — N-S tracking Tracking Axis: N-S horizontal (E-W rotation) Rotation: ±30° from horizontal Peak Output: Morning + Evening dual peaks Land Density: +30% modules per hectare Shading: Minimal inter-row — low tilt Wind Load: Lower — reduced tilt angle Drive: Single motor per double row Module: Bifacial preferred — rear capture Grid: Flatter generation profile — easier grid Control: Astronomical tracking algorithm Warranty: 5Y mech / 25Y structural
+30% densityDual peaks E-WLow wind loadGrid-friendly
IEC 62817IS 800
vertical axis tracker VAT rooftop urban BIPV azimuth
Vertical AxisAzimuth Tracker

Niccau VAT — Vertical Axis Azimuth Tracker

Single vertical-axis rotation — module rotates in azimuth (N-S-E-W) while maintaining fixed tilt angle. Rooftop and ground-mount

Technical Specifications

Rotation Axis: Vertical — azimuth only Azimuth Range: 0°–360° full rotation Tilt Angle: Fixed (site-specific, 10°–25°) Yield Gain: +15–20% vs fixed tilt Drive: Slewing ring — worm gear motor Footprint: Small — single post pedestal Load: 2 kWp – 30 kWp per unit Rooftop: Minimal ballast — low roof load Wind Stow: Face-into-wind stow mode Control: WiFi / 4G dashboard app Application: Rooftop / small ground Warranty: 5Y mech / 25Y structural
360° azimuthRooftop idealSmall footprintApp monitoring
IEC 62817IS 800
retrofit tracker upgrade fixed tilt to SAT existing solar array
Retrofit SATFixed-to-Tracker Upgrade

Niccau Retro-SAT — Fixed Tilt to SAT Retrofit

Convert existing fixed tilt arrays to single-axis tracking — reuse existing foundations, upgrade to +20% annual yield without full rebuild

Technical Specifications

Foundation: Reuses existing piles / footings Structure: Adaptor bracket to existing pile Add: Torque tube + drive motor + controller Yield Gain: +18–22% over existing fixed Downtime: <48 hours per MW (retrofit) Module: Existing modules reused — no change Inverter: Existing inverters compatible Control: New SAT controller + SCADA Structural: Re-assessment of existing piles Payback: 2–3 years additional revenue Assessment: Free site evaluation offered Warranty: 5Y mech / 10Y structural (retrofit)
Reuse foundations+20% yield<48hr downtime2-3yr payback
IEC 62817Retrofit
⚙️
Tracker Control Systems & IoT Platform

Niccau Industries' proprietary tracker control electronics — row-level controllers, master controllers, IoT gateway, cloud SCADA platform, mobile monitoring app, and AI-assisted yield optimisation. IP65 rated, 4G / Wi-Fi / RS485 connectivity, IEC 61850 integration for power plant SCADA, and OTA firmware updates. Covers individual trackers to 500 MWp plant-wide control.

solar tracker row controller IoT SCADA master control unit
Row ControllerPer Row — IP65

Niccau TRC-1 — Tracker Row Controller

Autonomous row-level controller — runs independently even if master communication fails. IP65. Solar-powered option.

Technical Specifications

Controller: ARM Cortex-M4 processor Algorithm: Astronomical sun-position (NREL SPA) GPS: Onboard GPS — auto lat/lon sync Backtracking: Per-row shadow avoidance Motor Control: Closed-loop with encoder Position Accuracy: ±0.5° tracking Communication: RS485 / CAN / Wireless mesh Wind Sensor: Integrated anemometer input Stow: Auto at configurable wind threshold Power: 24VDC — solar panel powered option Enclosure: IP65 — GRP / polycarbonate OTA: Firmware update over-the-air
NREL SPA algorithm±0.5° accuracyGPS syncIP65OTA update
IEC 62817IP65NREL SPA
solar tracker master controller cloud SCADA 4G IoT platform
Master ControllerPlant-Wide SCADA

Niccau TMC — Master Tracker Controller + Cloud SCADA

Plant-wide master controller managing up to 500 row controllers — cloud SCADA, mobile app, and AI yield optimisation

Technical Specifications

Capacity: Up to 500 row controllers Plant Size: Up to 500 MWp plant Communication: 4G / Ethernet / Wi-Fi Protocol: Modbus RTU + TCP / IEC 61850 SCADA: Cloud dashboard + web portal App: iOS + Android mobile monitoring AI: Machine learning yield optimisation Alarms: SMS / email / app push alerts Data: 10-second data granularity Reports: Daily / weekly / monthly energy Integration: Inverter / MET station / DISCOM Cyber security: AES-256 data encryption
500 MWp plantCloud SCADAiOS + AndroidAI yield opt.AES-256
IEC 61850Modbus4G

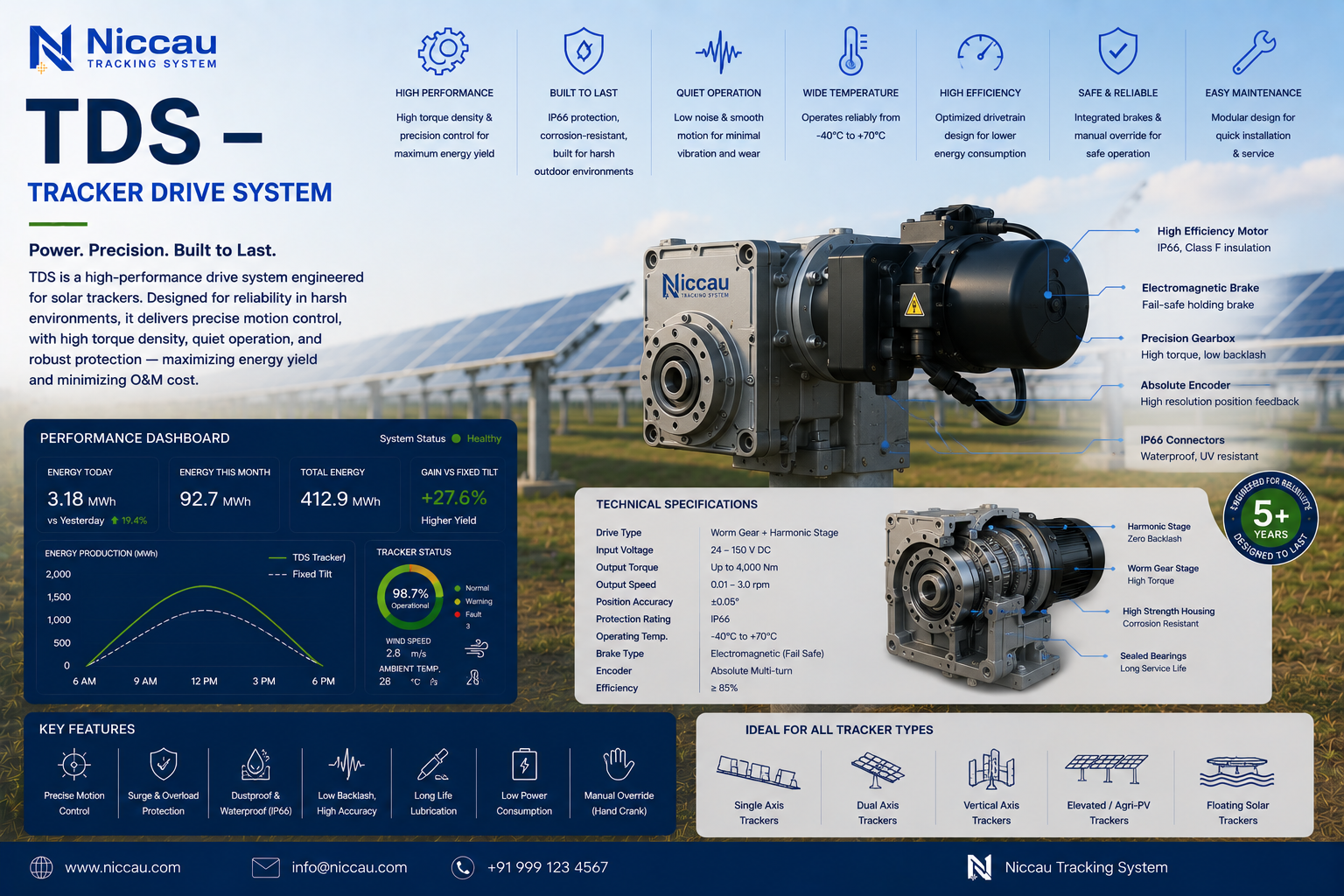

tracker drive motor brushless DC BLDC gearbox assembly
Drive SystemMotor + Gearbox

Niccau TDS — Tracker Drive System

Complete motor-gearbox-encoder drive assembly for Niccau and third-party tracker structures — IP67, 10-year rated

Technical Specifications

Motor: BLDC brushless DC — 24V / 48V Gearbox: Worm gear — self-locking Gear Ratio: 800:1 to 2000:1 (load-specific) Output Torque: 1500 Nm – 8000 Nm Speed: 1°/min – 5°/min tracking Encoder: Absolute encoder — no homing End stop: Hardwired mechanical limit Stall protection: Thermal + current IP Rating: IP67 — submersible rated Temp: –30°C to +70°C ambient Maintenance: Grease-sealed — 5 year MTBF Warranty: 5 Years drive system
IP67 driveSelf-locking wormAbsolute encoder8000 Nm torque
IP67IEC 62817
🔧
Tracker Accessories & Spare Parts

Complete accessories and spare parts ecosystem for Niccau tracker systems — compatible with most major tracker brands. Torque tube connectors, bearing assemblies, drive pile adaptors, stow lock pins, wind speed sensors (anemometers), irradiance sensors, weather stations, grounding clamps, module clamps for tracker purlin, and all field service tools and testing instruments.

⚙️

Bearing Assemblies

  • Pillow block bearing — tracker row
  • Self-aligning spherical bearing
  • Sealed for life — no maintenance
  • All torque tube diameters
  • SS / GI housing options
🔧

Torque Tube Connectors

  • Slip joint — multi-segment tube
  • Rigid coupler — butt joint
  • Flex joint — terrain following
  • All RHS / CHS section sizes
  • HDG / SS bolted connection
🔌

Drive Pile Adaptors

  • Top hat — pile to torque tube
  • Adjustable height adaptor
  • Tilt correction bracket
  • For C / I / RHS pile sections
  • Zinc plated / HDG
🌇

Wind Speed Sensors

  • Cup anemometer — 3-cup style
  • Ultrasonic wind sensor — no moving parts
  • Wind direction vane — combined
  • 4–20mA / RS485 output
  • IP67 — outdoor rated
☀️

Irradiance & MET Sensors

  • Pyranometer — ISO 9060 Class A/B
  • Reference cell — Si / TOPCon
  • Module temperature sensor PT100
  • Ambient temp + humidity
  • Mini WMS weather station kit
🔋

Module Clamps — Tracker

  • Tracker rail mid-clamp
  • Tracker rail end-clamp
  • Universal — all module frames
  • Stainless steel T-bolt
  • Compatible all tracker rails
🔥

Stow Lock & Brake

  • Mechanical stow lock pin
  • Electromagnetic brake — DC power
  • Spring return stow brake
  • Fail-safe — power-off stow
  • All rotation axis types
⚡

Tracker Grounding

  • Grounding clamp — torque tube
  • Bonding jumper — row-to-row
  • Bare Cu / GI earthing wire
  • Drive pile earthing lug
  • IS 3043 earthing system
📋

Field Service Tools

  • Tracker alignment tool kit
  • Inclinometer — angle setting
  • Torque wrench set — calibrated
  • Row controller test harness
  • Encoder signal tester / reader
🏭 Manufacturing & Quality

Built for 25 Years in the Indian Sun

Niccau Industries' Tracker Division manufactures tracker structural steel (IS 2062 GMS + IS 4759 HDG), precision drive assemblies (IP67 BLDC motor + worm gearbox), control electronics (IP65 PCB + enclosure), and complete tracker kit — all under one quality system at one facility. This vertical integration ensures design-to-manufacture consistency that standalone tracker assemblers cannot match.

Every tracker undergoes full assembly and function testing at the factory — motor direction, encoder calibration, stow test, communication link, and waterproofing soak test — before being despatched as a pre-tested kit for rapid site installation. Our field commissioning team completes installation qualification and first-season yield monitoring for every project.

IEC 62817Type Tested Certified
100%Factory Function Tested
IS 800Structural Design Code
25 YrStructural Warranty
⚙️

Structural Fab (In-Group)

All tracker structural steel fabricated at Niccau Energy Infra's facility — IS 2062 GMS + IS 4759 HDG in-house

🔥

IP67 Drive Assembly

Motor + worm gearbox + encoder assembled and soak-tested to IP67 standard before despatch

⚡

PCB & Electronics Mfg

Row controller and master controller PCBs manufactured and tested at Niccau's electronics division

🏛️

Full Kit Factory Test

Complete tracker row assembled and function-tested — rotation, stow, backtracking, communication — before despatch

📋

IEC 62817 Type Test

Tracker design type-tested per IEC 62817 at accredited independent lab — mechanical load, fatigue, environment

☀️

Field Commissioning

Niccau's tracker team commissions every project — encoder calibration, SCADA integration, and first-season yield monitoring

Why Niccau Tracking Systems

☀️

BARREL 5,000 MW Proven

Niccau trackers are anchor-tested on BARREL Group's own project pipeline — real Indian conditions, not lab simulations

⚙️

Vertical Integration

Structure + drive + controller + SCADA — all manufactured in-group. No dependency on 3rd party tracker brands

🌐

Any Terrain Solution

Flat, sloped, rocky, sandy, floating, agrovoltaic — Niccau has a tracker solution for every Indian terrain type

📈

AI Yield Optimisation

Cloud-based AI optimisation learns site-specific conditions and continuously improves tracking angle decisions for maximum energy harvest

📦 Request a Quote

Get a Tracker Quote & Yield Analysis

Share your project details — we respond within 24 hours with tracker specifications, pricing, estimated yield gain over fixed tilt, and payback analysis. For existing fixed tilt projects considering tracker retrofit, request our free yield assessment.

☀️

Tracker Sales & Engineering

trackers@niccauind.in | epc@barrel.energy

📈

Free Retrofit Yield Assessment

For existing fixed tilt — submit project coordinates for free Retro-SAT analysis

🌐

Export Enquiries

export@domextradlink.com — DomEx TradLink

📦 Tracker System Enquiry

Share your project — we respond within 24 hours with specifications, pricing, and yield gain analysis.

🔒 Confidential — Yield analysis and site assessment provided free of charge

☀️ Niccau Industries Limited — Solar Tracking Systems

MORE SUN. MORE POWER.
EVERY HOUR. EVERY DAY. EVERY TERRAIN.

Single-Axis, Dual-Axis, Agrovoltaic, Terrain-Following, Floating, Vertical-Axis, Bifacial-Optimised, Retrofit — Niccau Industries has a tracker for every project, every terrain, and every ambition. Backed by BARREL Group's 5,000 MW pipeline, IEC 62817 type-tested, and exported to 54+ countries through DomEx TradLink. The sun doesn't stand still — neither should your modules.

☀️ Single Axis SAT ⚊ Dual Axis DAT ⚙️ Control Systems 📦 Get a Quote

Solar Modules ·  Inverter / UPS ·  Structures ·  Cable & Accessories ·  Tracking Systems ·  Transformers ·  BoS for Power Sector

© Niccau Industries Limited — Tracker Division | Associate of BARREL / StenJaan Global Group | Export: DomEx TradLink

Main Menu
